Rectangle Tubing

Rectangle Tubing Overview

Consolidated Metals Inc. offers a comprehensive selection of rectangular steel tubing designed for applications demanding both structural integrity and design flexibility. Our rectangular profiles are ideal for automotive components, RV manufacturing, agricultural equipment, and metal fabrication projects where strength-to-weight ratio is critical.

Leveraging strategic mill partnerships across the Midwest and Southeast, CMI delivers custom dimensions, wall thicknesses, and finishes tailored to your exact project requirements—backed by the reliability and service you expect.

Product Specifications

Available Sizes & Gauges

Size (inches)	22GA	20GA	18GA	16GA	15GA	14GA	13GA	12GA	11GA	10GA	9GA	8GA	7GA
0.500 x 0.750	●	●	●	●	●	●	●	●	●	●	●	●	●
0.500 x 0.875	●	●	●	●	●	●	●	●	●	●	●	●	●
0.500 x 1.000	●	●	●	●	●	●	●	●	●	●	●	●	●
0.500 x 1.250*	●	●	●	●	○	○	●	●	●	●	●	●	●
0.500 x 1.375	●	●	●	●	●	●	●	●	●	●	●	●	●
0.500 x 1.500*	●	●	●	●	○	○	●	●	●	●	●	●	●
0.750 x 1.125*	●	●	●	●	○	○	●	●	●	●	●	●	●
0.750 x 1.250*	●	●	●	●	○	○	●	●	●	●	●	●	●
0.750 x 1.500*	●	●	●	●	○	○	●	●	●	●	●	●	●
0.750 x 1.750*	●	●	●	●	○	○	●	●	●	●	●	●	●
0.750 x 2.000*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.000 x 1.500*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.000 x 1.750*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.000 x 2.000	●	●	●	●	●	●	●	●	●	●	●	●	●
1.000 x 2.250*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.000 x 2.750*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.000 x 3.000*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.250 x 1.750	●	●	●	●	●	●	●	●	●	●	●	●	●
1.500 x 2.000	●	●	●	●	●	●	●	●	●	●	●	●	●
1.500 x 2.500*	●	●	●	●	○	○	●	●	●	●	●	●	●
1.500 x 3.000*	●	●	●	●	○	○	●	●	●	●	●	●	●
2.000 x 3.000*	●	●	●	●	○	○	●	●	●	●	●	●	●
4.000 x 2.000	●	●	●	●	●	●	●	●	●	●	●	●	●
4.000 x 3.000	●	●	●	●	●	●	●	●	●	●	●	●	●
5.000 x 2.000	●	●	●	●	●	●	●	●	●	●	●	●	●
6.000 x 2.000	●	●	●	●	●	●	●	●	●	●	●	●	●

Legend:
● = Available
○ = Available with galvanized re-metallization and acrylic clear coating
*Denotes sizes with enhanced coating options
Note: This is a representative sample. CMI maintains additional sizes and can produce custom dimensions. Contact us for availability.

Industries We Serve

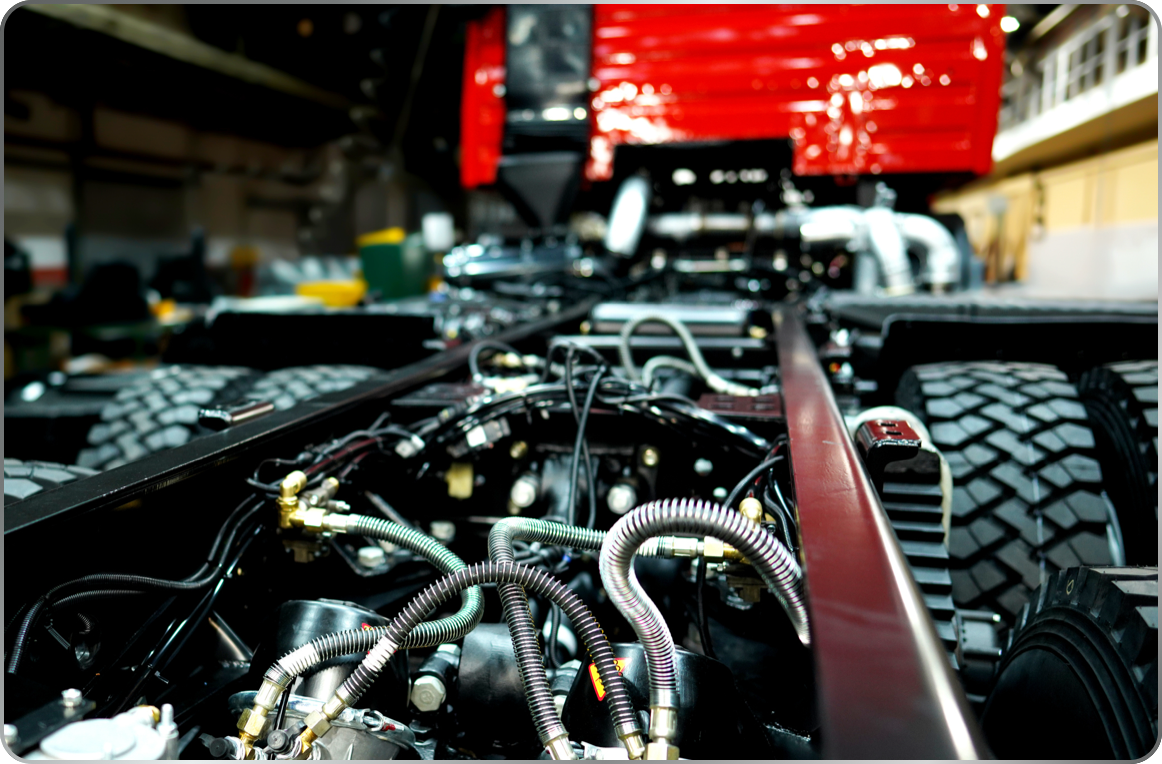

Automotive & Recreational Vehicles – Frame components, chassis, exhaust systems
Metal Fabrication & Service Centers – Supply for further processing and distribution
Agricultural Equipment – Fencing, gates, structural supports
Trailers & Transportation – Drop-deck trailers, utility trailers, cargo supports
Construction & Infrastructure – Deck railing systems, steel buildings, structural supports

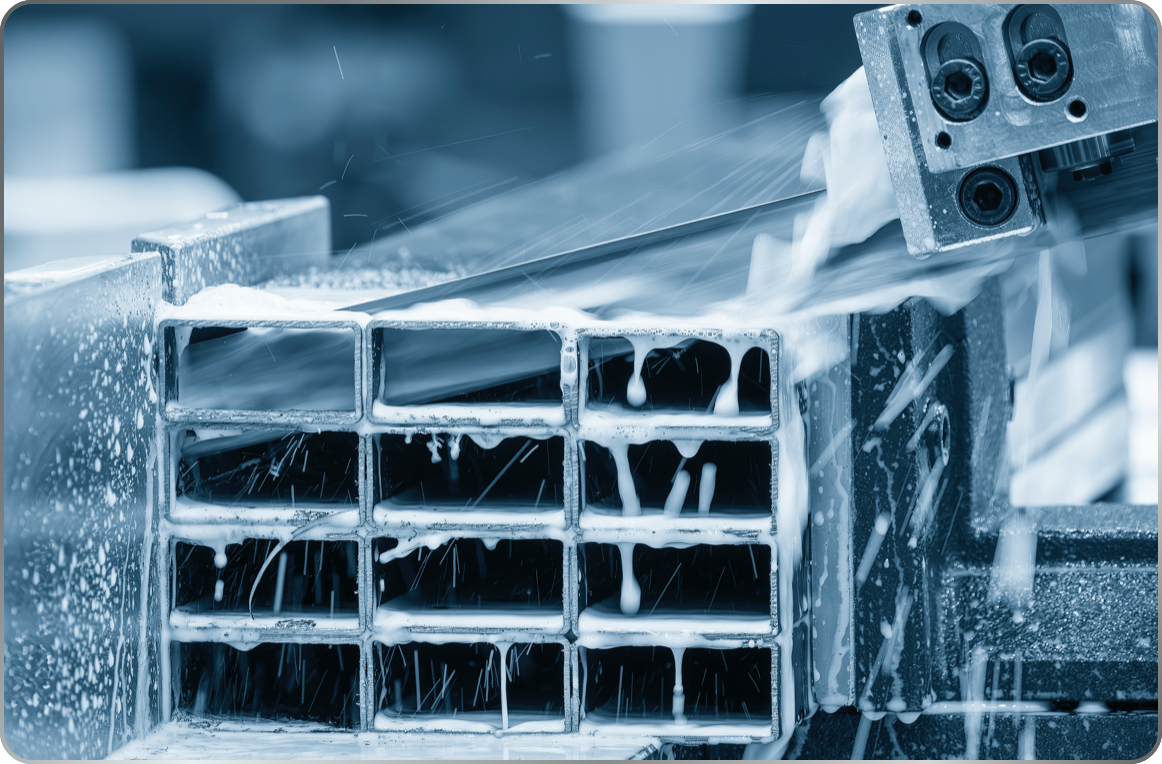

Value-Added Processing Services

Precision Cutting & Fabrication

Laser Cutting – 5' x 10' table capacity; 4000-watt resonator
- ⅜" stainless steel
- ¼" aluminum
- ¾" mild steel
CNC Cutting – Tight tolerances, burr-free edges
Deburring – Production-ready parts eliminate secondary handling

Notching, Punching & Drilling

Double-ended notching for seamless weld joints
Custom hole patterns and slot punching via Niagara punch press
End-smashing and custom forming

Bending & Forming

165-ton and 60-ton Accurapress hydraulic press brakes
SOCO CNC electric tube bender (4-axis)
Custom tooling for production runs

Welding

Five MIG/TIG weld stations
OTC LT-ARC 9-station robotic welding system with ultra-low spatter technology

Why Partner with CMI for Rectangle Tubing?

Extensive Inventory

Multiple sizes and gauges stocked for immediate availability

One-Stop Processing

Eliminate multiple suppliers with integrated fabrication services

Engineering Support

Design consultation and prototyping assistance

Flexible Order Quantities

From prototypes to large production runs

Transparent Pricing & Communication

No surprises, just straightforward partnership

Build to Suit: Engineered for Your Application

Need a non-standard profile or custom secondary processing? CMI specializes in build-to-suit rectangular tubing solutions tailored to your unique manufacturing requirements.

Custom capabilities include:

Non-standard dimensions and wall thicknesses
Integrated cutting, welding, and forming in a single order
Custom stocking programs to align with your production schedules
Rapid prototyping and design iteration support

Request a Custom Quote

Tell us your specifications, quantities, and timeline—we'll deliver a detailed proposal within 24 hours.

Request a Quote

Download Complete Size Chart

Access the full CMI rectangle tubing specifications, including weight per foot and material properties.

Download PDF
